[SYC30PN65WK] 650V/30A NPT IGBT chip with low Vce(sat), 10μs short-circuit, for motor drives
Size(Inch): 6\nType: Std\nVoltage(V): 650\nCurrent(A): 30\nEffective Die Quantity: 525\nDetails: The SYC30PN65WK is a high-efficiency 650V IGBT chip built on NPT technology. It delivers low Vce(sat), 10μs short-circuit capability and square RBSOA, ideal for industrial IGBT and motor control IGBT applications requiring reliable power switching.
更多详情
Applications:
- Motor Control Application
- Qualified For Industrial Market
Features:
- Non Punch Through (NPT) Technology
- Low Vce(sat)
- 10µs Short Circuit Capability
- Square RBSOA
- Positive Vce(sat) Temperature Coefficient
![[SYC30PN65WK] 650V/30A NPT IGBT chip with low Vce(sat), 10μs short-circuit, for motor drives](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/421401_927291.png)

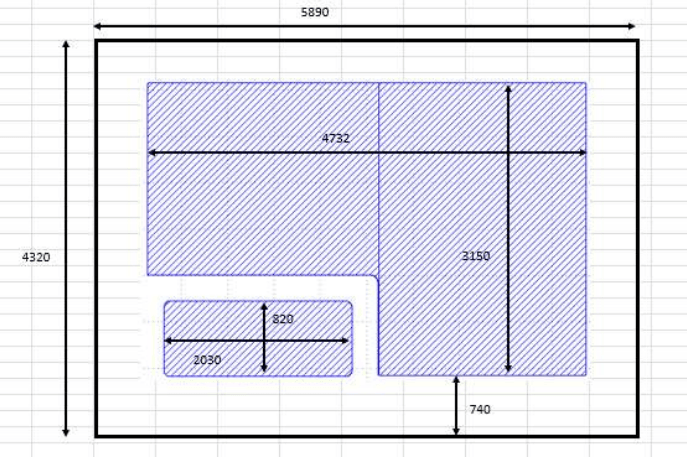

Die Chip Size:
![[SYC30PN65WK]](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/47286_93683.png)
