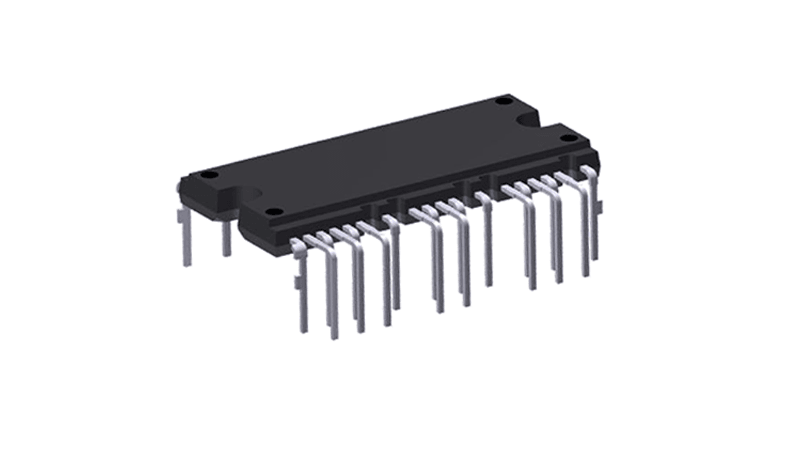

SYIM10G60BTE: 600V/10A, Integrated 6 low-loss IGBTs, Insulation class 1500Vrms/min
Packaging Type: DIP-25\nRDS(on)@Typ.Tj=25°C: 1.2\nThe SYIM10G60BTE IPM module is featuring integrated IGBTs, gate drivers, and comprehensive protection including overcurrent (OC), overtemperature (OT), and undervoltage (UV). \nIt offers low conduction loss and high insulation performance, making it ideal for inverter-driven applications such as air conditioner compressors, motor drives, and power electronics inverter systems.
更多详情
Applications:
- Air conditioning compressor
- Refrigerator compressor
- Frequency converter
- Washing Machine
Features:
- Integrated 6 fast recovery power MOSFETs
- Integrated high voltage gate drive circuit
- Compatible with 3.3 V & 5 V input signal, effective at high level
- Integrated temperature output
- Built-inquick recovery boot strap diode
- Insulation class 1500 Vrms / min
- Integrated bootstrap functionality
- High reliability and thermal stability, good parameter consistency
Internal Electrical Schematic:
![[ SYIM10G60BTE ] 600V/10A, Integrated 6 low-loss IGBTs, Insulation class 1500Vrms/min](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/678805_432713.png)
