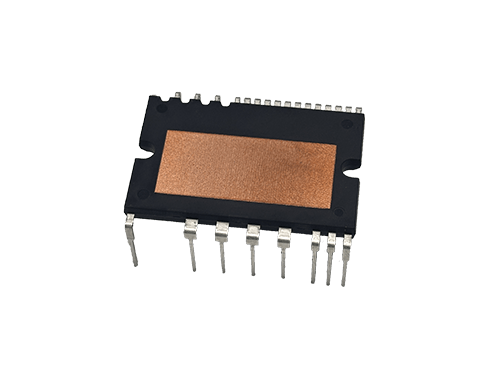

SYIM15D60: 600/15A, 3-phase IPM with integrated HVIC and full protection, delivering high reliabi
Packaging Type: DIP-24\nRDS(on)@Typ.Tj=25°C: 1.6\nThe SYIM15D60 is a high-performance 600V/15A 3-phase IGBT IPM (Intelligent Power Module) designed for motor drive applications, including induction motors, BLDC motors, and PMSM systems. It integrates HVIC gate drivers, level shifting, and comprehensive protection features such as undervoltage (UV), overcurrent (OC), and overtemperature (OT) protection with temperature sensing output. \n
更多详情
Applications:
- Air conditioning compressor
- Refrigerator compressor
- Low power invert
- Air cleaner
- Frequency converter
Features:
- Integrated 6 low-loss IGBTs
- Integrated high voltage gate drive circuit (HVIC)
- Built-in under voltage protection and over temperature, over current protection and temperature output
- Built-in fast recovery bootstrap diode with current limiting resistor
- Insulation class 1500 Vrms / min
- High reliability and thermal stability,good parameter consistency
- Built-in temperature output
Internal Electrical Schematic:
