SYIM50D65: 650V/50A, Built-in HVIC, and integrates lift-off diode with current-limiting resistor

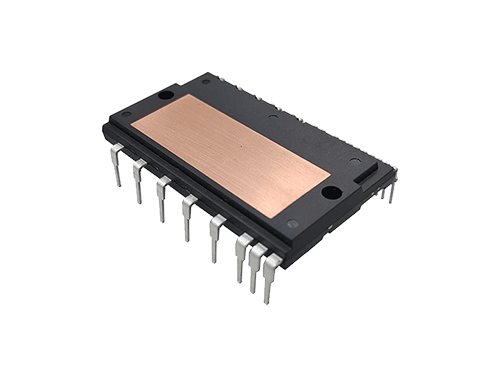

Packaging Type: DIP-29\nVCE(sat)@Typ.Tj=25°C：1.7\nSYIM50D65 650V 50A 3-Phase Intelligent Power Module (IPM) – DIP29-DBC High-Thermal Package. Features Integrated FS-IGBT & HVIC Driver with 2500Vrms Isolation. \nSupports OCP/OTP/UVLO Protection, Temperature Output, and 3.3V/5V Logic Compatibility. High-Performance Semiconductor Solution for HVAC Compressors, Inverters, and Industrial Drives.
更多详情
Applications:
- Refrigerator compressors
- Low-power frequency converters
- Industrial sewing machines
- Air conditioning compressors
Features:
- Built-in high-voltage drive circuit (HVIC).
- The HVIC chip integrates a lift-off diode with a current-limiting resistor
- The high-side control voltage has undervoltage protection
- The low-side LVIC features short-circuit current protection (SC), temperature output (TO), over-temperature protection (OTP), and undervoltage protection (UV)
- Fault outputs (UV, SC, OTP) "shut down" the LVIC output when protection is triggered.
- Input interface compatible with 3.3 V and 5 V signals, active high
- Insulation class: 2500 V rms / min
Internal Electrical Schematic:
![[ SYIM50D65 ] 650V/50A, Built-in HVIC, and integrates lift-off diode with current-limiting resistor](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/530435_951963.png)
