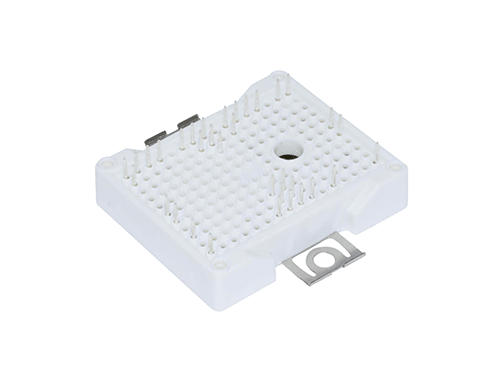

SYMT25PI120B9H: 1200V/20A Field Stop Trench IGBT Module with low loss, high current capability
Package：EasyPIM2\nVCE(SAT)@typ.Tj=25°C: 1.95\nVGEth@typ.Tj=25°C: 5.6\nDetails: SYMT25PI120B9H is a 1200V high-performance IGBT module designed for motor drives, air conditioning systems, and industrial inverters, featuring low switching loss, fast switching speed, high short-circuit ruggedness, and efficient thermal management.
更多详情
Applications:
- Motor DrivesAir
- Air Conditioning
- Servo Drives
- UPS
- Auxiliary Inverters
Features:
- Field Stop Trench Gate IGBT
- Short Circuit Rated >10μs
- Low Saturation Voltage
- Low Switching Loss
- 100% RBSOA Tested (2×Ic)
- Low Stray Inductance
- Lead Free, Compliant with RoHS Requirement
Package Outline (Unit: mm):
![[SYMT25PI120B9H] 1200V/20A Field Stop Trench IGBT Module with low loss, high current capability](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/879327_924262.png)
