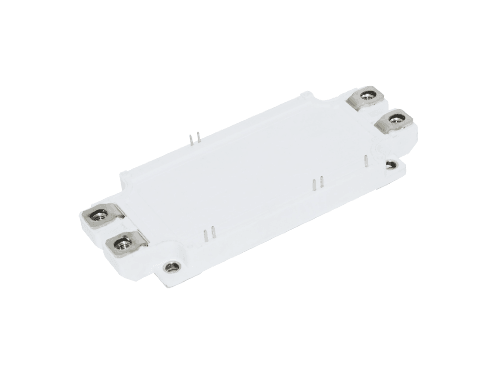

SYMT450HF120T9H-M: 1200V/450A Automotive-grade IGBT module featuring copper wire bonding
Packaging Type: EconoDUAL\nVCE(SAT)@typ.Tj=25°C: 1.7\nVGEth@typ.Tj=25°C: 5.6\nDetails: High-power 1200V IGBT Module designed for hybrid electric vehicles, commercial vehicle motor drives, and inverter systems, delivering fast switching, robust RBSOA capability, and low conduction loss.
更多详情
Applications:
- Hybrid Electrical Vehicles(H)EV
- Automotive Applications
- Commercial Agriculture Vehicles
- Motor Drives
Features:
- Field Stop Trench Gate IGBT
- Short Circuit Rated >10μs
- Low Saturation Voltage
- Low Switching Loss
- 100% RBSOA Tested (2×Ic)
- Low Stray Inductance
- Lead Free, Compliant with RoHS Requirement
![[SYMT450HF120T9H-M] 1200V/450A Automotive-grade IGBT module featuring copper wire bonding](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/421401_927291.png)
Package Outline (Unit: mm):
