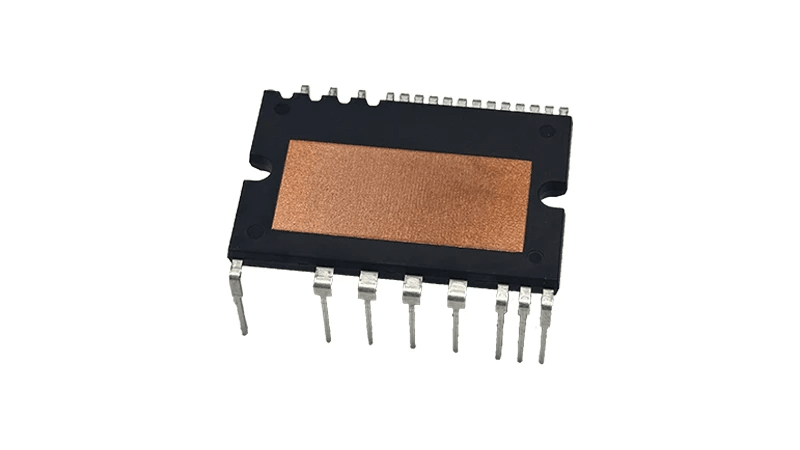

[DIP-24]: Built-in UVLO, OTP, OCP, and temperature sensing
Chips: IGBT\nTopological Function: Three-phase full-bridge\nTypical Application: Air conditioning fan, dishwasher, high-speed blower, low-power motor
更多详情
Product Details: SYIM10G60BTB, SYIM15G60BTB, SYIM20G60BTB, SYIM30G60BTB
As one of SHYSEMI's classic and mature package platforms, DIP-24 benefits from decades of proven manufacturing and soldering process reliability, ensuring high production yield and minimal operational risk.
Features:
- Integrated 6 low-loss IGBTs
- Integrated high voltage gate drive circuit (HVIC)
- Built-in under voltage protection and over temperature, over current protection and temperature output
- Built-in fast recovery bootstrap diode with current limiting resistor
- Insulation class 1500 Vrms / min
- High reliability and thermal stability,good parameter consistency
- Built-in temperature output
Internal Electrical Schematic:
